Bridge Type Tripod Turnstile Gate Fully Automatic with RS485 Interface and 40 Persons/Min Capacity in 1200x280x980mm Size

时间:2025-12-17人气:作者: 小编

Bridge Type Tripod Turnstile Gate Fully Automatic with RS485 Interface and 40 Persons/Min Capacity in 1200x280x980mm Size

Bridge Type Tripod Turnstile Gate

Bridge Type waist height turnstile

Fully Automatic Tripod Turnstile Gate

Place of Origin:



shenzhen

Brand Name:



cxt

Certification:



Single label product appearance patent

Model Number:



CXT-SW128Z

Chat Now
Bridge Type Tripod Turnstile Gate Fully Automatic with RS485 Interface and 40 Persons/Min Capacity in 1200x280x980mm Size
Bridge Type Tripod Turnstile Gate Fully Automatic with RS485 Interface and 40 Persons/Min Capacity in 1200x280x980mm SizeBridge Type Tripod Turnstile Gate Fully Automatic with RS485 Interface and 40 Persons/Min Capacity in 1200x280x980mm SizeBridge Type Tripod Turnstile Gate Fully Automatic with RS485 Interface and 40 Persons/Min Capacity in 1200x280x980mm SizeBridge Type Tripod Turnstile Gate Fully Automatic with RS485 Interface and 40 Persons/Min Capacity in 1200x280x980mm SizeBridge Type Tripod Turnstile Gate Fully Automatic with RS485 Interface and 40 Persons/Min Capacity in 1200x280x980mm SizeBridge Type Tripod Turnstile Gate Fully Automatic with RS485 Interface and 40 Persons/Min Capacity in 1200x280x980mm SizeBridge Type Tripod Turnstile Gate Fully Automatic with RS485 Interface and 40 Persons/Min Capacity in 1200x280x980mm SizeBridge Type Tripod Turnstile Gate Fully Automatic with RS485 Interface and 40 Persons/Min Capacity in 1200x280x980mm SizeBridge Type Tripod Turnstile Gate Fully Automatic with RS485 Interface and 40 Persons/Min Capacity in 1200x280x980mm Size
Product Details
Passing Speed:
40 Persons/Min.,30people/min,35 Person/min
Power Supply:
AC220V,AC220V/110V Optional,110~240 V(AC),50Hz,AC220±10%
Transit Speed:
25~32 Persons / Min,35 Persons/min,20-30 Persons Per Minute,20-30people/min(normal Close)
Working Environment:
Indoor/Outdoor (with A Tent Over),-10-70 Degree,indoor / Outdoor,Indoor & Outdaoor
Interface:
RS485,TCP/IP,Dry Contact,Switch Signal
Keyword:
Turnstile Price,Tripod Turnstile,turnstile Door
Application:
Quality Inspection,Indoor/outdoor With Tent,Company,hotel,airport
Highlight:

Bridge Type Tripod Turnstile Gate

Bridge Type waist height turnstile

Fully Automatic Tripod Turnstile Gate

Payment & Shipping Terms
Minimum Order Quantity
1
Price
90~3500USD
Packaging Details
Cartons and wooden boxes
Delivery Time
20 working days
Payment Terms
Public Account
Supply Ability
500ps
Product Description
Bridge Type Fully Automatic Tripod Turnstile CXT-SW128Z
High-performance bridge type fully automatic tripod turnstile gate with capacity of 40 persons per minute.
ModelCXT-SW128Z

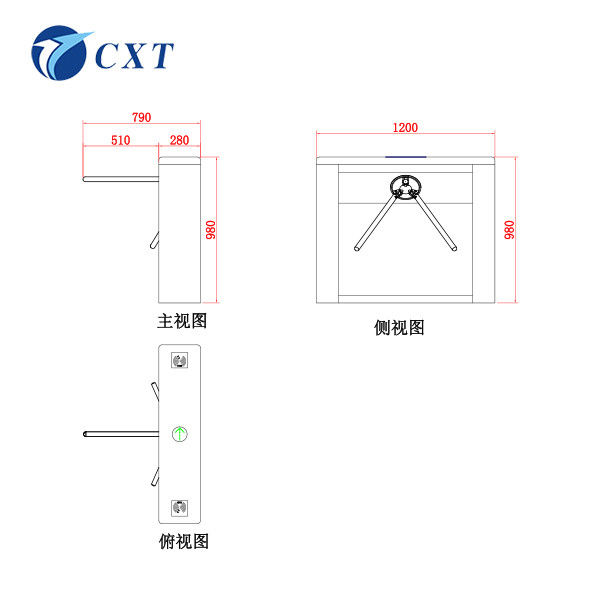

Specifications1200*280*980mm
Pole length510mm
ProcessProduced by bending, cutting, welding, polishing, grinding
MaterialNational standard 304 stainless steel (201 stainless steel, iron paint can be customized)
Bridge Type Tripod Turnstile Gate Fully Automatic with RS485 Interface and 40 Persons/Min Capacity in 1200x280x980mm Size 0 Bridge Type Tripod Turnstile Gate Fully Automatic with RS485 Interface and 40 Persons/Min Capacity in 1200x280x980mm Size 1 Bridge Type Tripod Turnstile Gate Fully Automatic with RS485 Interface and 40 Persons/Min Capacity in 1200x280x980mm Size 2 Bridge Type Tripod Turnstile Gate Fully Automatic with RS485 Interface and 40 Persons/Min Capacity in 1200x280x980mm Size 3
Key Features
  • Fault self-check and alarm prompt functions for easy maintenance
  • Compatible with any control device output signal for single/dual-direction control
  • Configurable single/dual-direction free passage settings
  • Automatic reset function with adjustable delay timing
  • High-brightness traffic light status indication
  • Anti-tailing function with automatic lock and alarm
  • Fire alarm signal integration for emergency opening
  • Memory function for improved passage speed
  • Alarm prompt for illegal passage attempts
  • Anti-reversal and anti-buffer functions for safety
  • Automatic operation with power on/off
  • Dynamic passage prompt system
Expandable Functions
  • Remote control and management via computer
  • People counting functionality
  • Customizable voice prompt system
Technical Comparison
NoNameCommon seriesPentium series
1Rotation modepushelectric
2Positioning principleoptical coupling fixed point1/500 decoding
3Positioning modehorizontal positionnot locked
4Transmission modesolenoid valvemotor
5Lifting rod modemanualautomatic
6Buffernoyes
7Anti-reversenoyes
8Noisehighno
9Mechanical wearhighno
10Illegal alarmnoyes
11Passage promptnoyes
12Service life1-3 years5-10 years
13Door rod thickness¢32¢38
14Power off dropyesyes
15Memoryyesyes
16Fire inputyesyes
17Feedback signal outputyesyes
Frequently Asked Questions
Can machines be used outside?
Yes, all our models include waterproof functionality for outdoor use.
What is the warranty for the machine?
(1) We provide a 2-year quality guarantee for all goods. (2) Within warranty period, we supply replacement parts (customer covers shipping costs).
When will you make the delivery?
Regular products: 3-5 days. Custom products: confirmed at order placement.
Payment terms?
30% advance payment by T/T, 70% balance before delivery.
Product Demonstration

Bridge Type Tripod Turnstile Gate Fully Automatic with RS485 Interface and 40 Persons/Min Capacity in 1200x280x980mm Size 4


Bridge Type Tripod Turnstile Gate Fully Automatic with RS485 Interface and 40 Persons/Min Capacity in 1200x280x980mm Size 4


Bridge Type Tripod Turnstile Gate Fully Automatic with RS485 Interface and 40 Persons/Min Capacity in 1200x280x980mm Size 4

Application Case
Bridge Type Tripod Turnstile Gate Fully Automatic with RS485 Interface and 40 Persons/Min Capacity in 1200x280x980mm Size 7
