Intelligent Automatic Tripod Turnstile Gate with RS485 Communication 20-30 Persons/Minute 1500x280x980mm

时间：2025-12-17人气：作者： 小编

Intelligent Automatic Tripod Turnstile Gate with RS485 Communication 20-30 Persons/Minute 1500x280x980mm

Intelligent Tripod Turnstile Gate

Intelligent tripod access control system

Automatic tripod access control system

Place of Origin:



shenzhen

Brand Name:



cxt

Certification:



Single label product appearance patent

Model Number:



CXT-SW150

Chat Now
Intelligent Automatic Tripod Turnstile Gate with RS485 Communication 20-30 Persons/Minute 1500x280x980mm
Intelligent Automatic Tripod Turnstile Gate with RS485 Communication 20-30 Persons/Minute 1500x280x980mmIntelligent Automatic Tripod Turnstile Gate with RS485 Communication 20-30 Persons/Minute 1500x280x980mmIntelligent Automatic Tripod Turnstile Gate with RS485 Communication 20-30 Persons/Minute 1500x280x980mmIntelligent Automatic Tripod Turnstile Gate with RS485 Communication 20-30 Persons/Minute 1500x280x980mmIntelligent Automatic Tripod Turnstile Gate with RS485 Communication 20-30 Persons/Minute 1500x280x980mmIntelligent Automatic Tripod Turnstile Gate with RS485 Communication 20-30 Persons/Minute 1500x280x980mmIntelligent Automatic Tripod Turnstile Gate with RS485 Communication 20-30 Persons/Minute 1500x280x980mmIntelligent Automatic Tripod Turnstile Gate with RS485 Communication 20-30 Persons/Minute 1500x280x980mmIntelligent Automatic Tripod Turnstile Gate with RS485 Communication 20-30 Persons/Minute 1500x280x980mm
Product Details
Transit Speed:
25~32 Persons / Min,35 Persons/min,20-30 Persons Per Minute,20-30people/min(normal Close)
Interface:
RS485,TCP/IP,Dry Contact,Switch Signal
Communication:
RS232,RS485 Communication
Keyword:
Turnstile Price,Tripod Turnstile,turnstile Door
Application:
Quality Inspection,Indoor/outdoor With Tent,Company,hotel,airport
Motor:
DC Brushless Motor,30W/24V,Brusless / Brushed Optional
Highlight:

Intelligent Tripod Turnstile Gate

,

Intelligent tripod access control system

,

Automatic tripod access control system

Payment & Shipping Terms
Minimum Order Quantity
1
Price
90~3500USD
Packaging Details
Cartons and wooden boxes
Delivery Time
20 working days
Payment Terms
Public Account
Supply Ability
500ps
RELATED PRODUCTS
Good price Intelligent Security Vertical Tripod Turnstile Gate with Fault Self-Checking and Alarm Prompt onlineVideo

Intelligent Security Vertical Tripod Turnstile Gate with Fault Self-Checking and Alarm Prompt

Get Best Price
Good price Intelligent Automatic Aesthetic Tripod Turnstile Gate with Brush-less Motor for Smooth Operation onlineVideo

Intelligent Automatic Aesthetic Tripod Turnstile Gate with Brush-less Motor for Smooth Operation

Get Best Price
Good price RFID Electronic Tripod Turnstile Gate with 40 Persons/Min. Capacity and 30W/24V DC Brushless Motor onlineVideo

RFID Electronic Tripod Turnstile Gate with 40 Persons/Min. Capacity and 30W/24V DC Brushless Motor

Get Best Price
Good price Fully Automatic Tripod Turnstile Gate with Anti-tailgating and Power-off Gate Drop for Secure Access Control onlineVideo

Fully Automatic Tripod Turnstile Gate with Anti-tailgating and Power-off Gate Drop for Secure Access Control

Get Best Price
CONTACT US
Chat Now
Product Description
Intelligent Automatic Tripod Turnstile Gate Outdoor With DC Brushless Motor
Sharp Corner Intelligent Automatic Tripod Turnstile CXT-SW150
ModelCXT-SW150
Specifications1500*280*980mm
Pole length510mm
ProcessProduced by bending, cutting, welding, polishing, grinding and other processes
MaterialNational standard 304 stainless steel (can be customized 201 stainless steel, iron paint)
Intelligent Automatic Tripod Turnstile Gate with RS485 Communication 20-30 Persons/Minute 1500x280x980mm 0Intelligent Automatic Tripod Turnstile Gate with RS485 Communication 20-30 Persons/Minute 1500x280x980mm 1Intelligent Automatic Tripod Turnstile Gate with RS485 Communication 20-30 Persons/Minute 1500x280x980mm 2Intelligent Automatic Tripod Turnstile Gate with RS485 Communication 20-30 Persons/Minute 1500x280x980mm 3
CXT-SW150 Sharp Angle Tripod Turnstile Features
  • Fault self-checking and alarm prompting functions for easy maintenance
  • Standard card reader window with external switch/remote control for one-way or two-way passage control
  • Automatic reset function with adjustable delay (3S, 5S, 10S, 60S)
  • Anti-collision function with automatic locking when no opening signal is received
  • Anti-tailgating function that locks after one person passes
  • Automatic gate-dropping during power failure for fire safety compliance
  • Compatibility with various card reading devices and relay switch signals
  • Optical working principle prevents multiple passages per card swipe
  • External button controls for left/right normally open functions
  • Remote control and management capability via computer (customizable)
  • Counting function for tracking number of people (customizable)

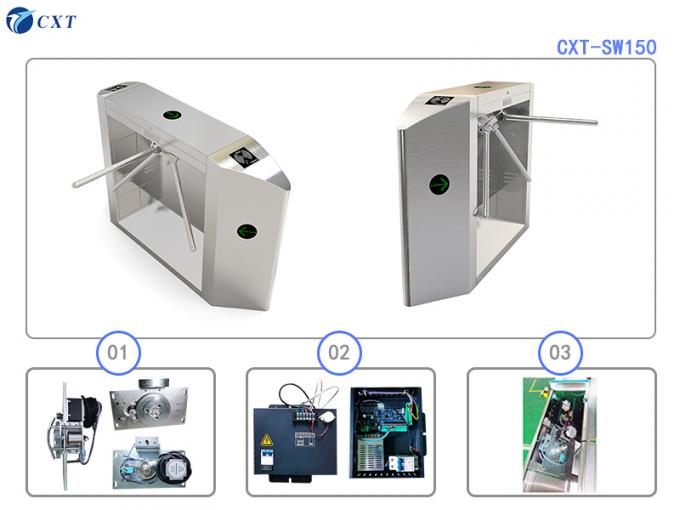

Intelligent Automatic Tripod Turnstile Gate with RS485 Communication 20-30 Persons/Minute 1500x280x980mm 4
CXT-SW150 Technical Specifications
Shell materialNational standard 304 stainless steel frame (customizable 201 stainless steel or iron paint)
Processing technologyBending, cutting, welding, polishing, grinding
Standard dimensionsWidth 280×Length 1200×Height 980 (mm)
WeightApproximately 70Kg
Gate rod length510mm
Maximum bearing capacity80Kg
Working driving force3Kg
SteeringOne-way, two-way
Light promptHigh brightness traffic status indication
Working movement12V/20W solenoid valve
Working environmentIndoor, outdoor (canopy recommended)
Temperature range-40℃ to 80℃
Gate opening time0.2 seconds
Passing speedApproximately 30 people/minute
Standard input interfaceRelay switch signal
Performance Comparison
NoNameCommon series on the marketPentium series
1Rotation modepushelectric
2Positioning principleoptical coupling fixed point1/500 decoding
3Positioning mode positioning armhorizontal positionnot locked
4Transmission modesolenoid valvemotor
5Lifting rod modemanualautomatic
6Buffernoyes
7Anti-reversenoyes
8Noisehighno
9Mechanical wearhighno
10Illegal alarmnoyes
11Passage promptnoyes
12Service life1-3 years5-10 years
13Door rod thickness￠32￠38
14Power off dropyesyes
15Memoryyesyes
16Fire inputyesyes
17Feedback signal outputyesyes
The Tripod Swing gate offers exceptional value, combining high-quality features with competitive pricing without compromising on performance or durability.
Intelligent Automatic Tripod Turnstile Gate with RS485 Communication 20-30 Persons/Minute 1500x280x980mm 5

Intelligent Automatic Tripod Turnstile Gate with RS485 Communication 20-30 Persons/Minute 1500x280x980mm 6


Intelligent Automatic Tripod Turnstile Gate with RS485 Communication 20-30 Persons/Minute 1500x280x980mm 6


Intelligent Automatic Tripod Turnstile Gate with RS485 Communication 20-30 Persons/Minute 1500x280x980mm 6
