Brushless Motor Flap Barrier Gate Bi Directional For Ticket Station YW120

Brushless Motor Flap Barrier Gate Bi Directional For Ticket Station YW120

Brushless Motor Flap Barrier Gate

Bi Directional automatic flap barrier

Bi Directional Flap Barrier Gate

Place of Origin:

shenzhen

Brand Name:

cxt

Certification:

Single label product appearance patent

Model Number:

CXT-YW120

Chat NowProduct DetailsWorking Environment:Indoor / Outdoor ( Shelter),non-frosted,-30℃ To +55℃; With A Humidity Less Than 95%,-10-50℃,indoorCommunication Interface:RS485 (Distance),TCP/IP/R485,RS485/Relay Signal,RS485/IP/TCP,TCP/IPDirection:One-way,bi-direction Adjustable,one Or Bi-direction(optional),Single/ Bi-directionType:Single Core & Double Core,Flap Barrier Gate,Fully Automatic Speed Lane Turnstile,Fully Automatic Flap Turnstile Gate,Mechanical AutomaticApplication:Fare Collection,ticket Station,OfficeCertification:ISO,CE,RoHSHighlight:

Brushless Motor Flap Barrier Gate

,

Bi Directional automatic flap barrier

,

Bi Directional Flap Barrier Gate

Payment & Shipping TermsMinimum Order Quantity1Price90~3500USDPackaging DetailsCartons and wooden boxesDelivery Time20 working daysPayment TermsPublic AccountSupply Ability500psRELATED PRODUCTSVideo

Brushless Motor Flap Barrier Gate Bi Directional For Ticket Station YW120

Get Best PriceVideo

Stainless Flap Barrier Gate Infrared Anti Pinch With Remote Control 160B

Get Best PriceVideo

30-40 People/Min Office Security Barrier Gate Retractable Flap Barrier 140X

Get Best PriceVideo

Indoor Electronic Barrier Gates 600mm Passage Width 304 Stainless Steel Y260T

Get Best PriceCONTACT USChat NowProduct Description

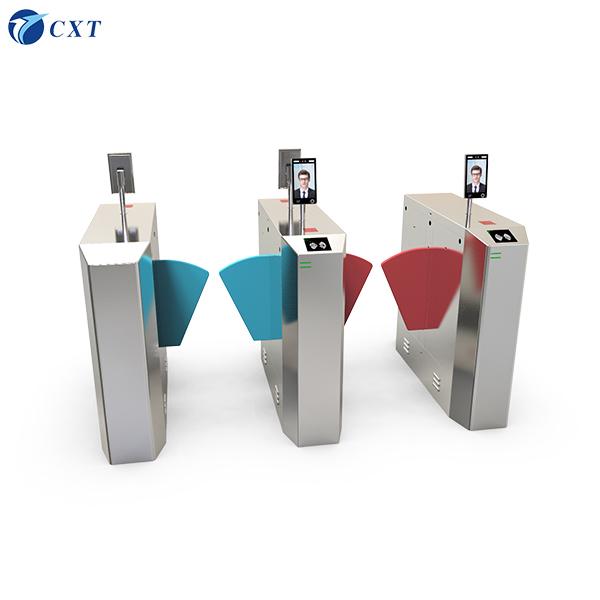

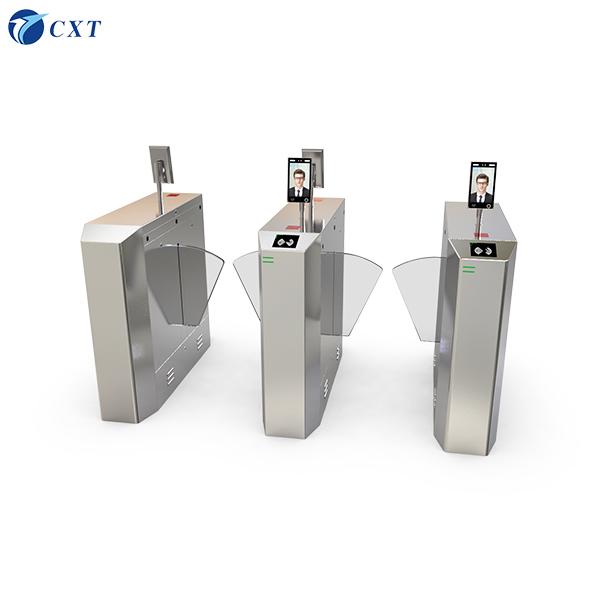

Brushless motor face recognition app cloud control Wing Gate CXT-YW120

Wing Gate CXT-YW120

Model: CXT-YW120
Specifications: 1600*300*1000mm Rod length: 260mm (single)
Process: produced by bending, cutting, welding, polishing, grinding and other processes
Material: National standard 304 stainless steel (can be customized 201 stainless steel, iron paint)

CXT-YW120 precision brushless wing gate
The innovative universal Pentium series wing gate is a new high-tech channel product that is upgraded to address the defects of the universal series wing gate. The product adopts a new industrial-grade circuit control system and advanced mechanical transmission design, plus accurate limit technology, which greatly improves the product in terms of performance, stability, environmental protection, life, cost performance, noise, etc.
The Pentium series wing gate has all the functions of the universal series wing gate, and has its incomparable significant advantages.

Functional description
l It has fault self-detection and alarm prompt functions, which is convenient for users to maintain and use.
l It can be connected to any control device output control signal or button or remote control to achieve single and two-way control of passage.
l Automatic reset function: After each 90-degree extension and detection of people and objects passing through, it will automatically reset, or if it does not pass within the specified time (delay multi-speed adjustable), the system will automatically cancel the right to pass and return to the initial position.
l Light indication: High-brightness traffic light status indication, guiding passage.
l Anti-tailgating function:
1. When the person or object in front passes through, if someone follows or rushes through the gate during the process of resetting the swing wing, an alarm will be sounded.
2. (When equipped with infrared detection) When the person or object in front has not completely passed through, if someone follows and breaks in, the infrared will start the alarm.
3. When someone swipes the card in the forward direction and someone breaks in in the reverse direction, the swing wing will be closed. When the person or object exits, the swing wing will open again to allow forward passage.
l Fire input: It can be connected to the fire alarm signal to achieve uninterrupted power supply.
l Alarm prompt function: When illegal passage or rushing through the gate, an alarm prompt will be automatically issued.
l Adjustable speed: The speed of opening and closing the swing wing is adjustable in 8 gears, and the user can set it according to actual needs.
l Automatic protection function: When external force prevents the normal movement of the swing wing, and the external force is continuous, the system will automatically detect 5 times and then automatically protect and enter the dormant state. When the next legal signal is input, the gate will automatically return to normal.
l Anti-collision buffer function: When someone or an object blocks the swing wing during illegal passage or forced tailgating, humanized injury prevention is achieved. It also greatly reduces mechanical damage caused by collision.
l Unmanned duty: The swing wing is automatically open when the power is off, and automatically reset when the power is on (blocking passage).
l Fast and silent: electric power assistance, zero mechanical wear. About 45-60 people/minute
Expandable functions:
1. Remote control and management through the management computer (command docking is required).
2. Counting function, realize the statistics of the number of people on the scene, and ensure accurate counting after people pass through.
3. Personalized voice prompt function makes the channel closer to life.
4. Technical parameters
◇ Shell material: SUS304 stainless steel
◇ Model: CXT-YW120
◇ Specification size: 1200×300×1000MM
◇ Weight: about 70KG.
◇ Swing wing model: 260mm (standard) acrylic.
◇Opening and closing speed: 0.8-2S.
◇ Motor: 24V /30W DC. ( )
◇ Positioning accuracy: 120 degree photoelectric positioning.
◇ Adaptable temperature: -40℃～ 80℃.
◇ Adaptable humidity: 5%——90%.
◇ Delay reset time: 3S, 5S, 10S, 20S adjustable.
◇ Passing speed: about 45 people/minute.
◇ Shell processing technology: laser, bending, cutting, welding, polishing, grinding and other processes are used for production.
◇ Working environment: indoor and outdoor.
