Scenic spot ticketing brushless fully automatic intelligent Butterfly Shape Tripod Turnstile CXT-SW126

时间:2025-06-30人气:作者: 小编

Scenic spot ticketing brushless fully automatic intelligent Butterfly Shape Tripod Turnstile CXT-SW126

Scenic spot ticketing brushless fully automatic intelligent Butterfly Shape Tripod Turnstile CXT-SW126

Place of Origin:



SHENZHEN

Brand Name:



cxt

Certification:



ce

Model Number:



CXT-SW126

Chat Now
Scenic spot ticketing brushless fully automatic intelligent Butterfly Shape Tripod Turnstile CXT-SW126
Scenic spot ticketing brushless fully automatic intelligent Butterfly Shape Tripod Turnstile CXT-SW126Scenic spot ticketing brushless fully automatic intelligent Butterfly Shape Tripod Turnstile CXT-SW126Scenic spot ticketing brushless fully automatic intelligent Butterfly Shape Tripod Turnstile CXT-SW126Scenic spot ticketing brushless fully automatic intelligent Butterfly Shape Tripod Turnstile CXT-SW126Scenic spot ticketing brushless fully automatic intelligent Butterfly Shape Tripod Turnstile CXT-SW126Scenic spot ticketing brushless fully automatic intelligent Butterfly Shape Tripod Turnstile CXT-SW126
Product Details
Material:
304 Stainless Steel,thickness Is No Less Than 1.3mm
Power Supply:
AC220V,AC220V/110V Optional,110~240 V(AC),50Hz,AC220±10%
Dimension:

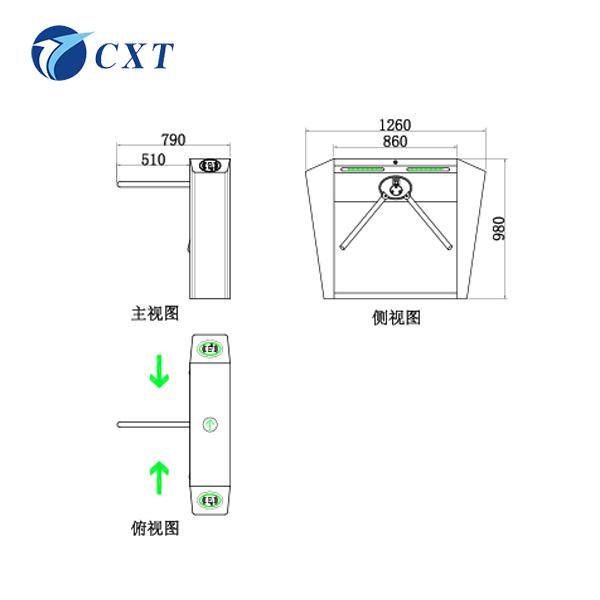

420mm*330mm*980mm,L1200 X W280 X H1000mm,L1200 * W280 * H980mm,1300*300*1000mm,1200*280*980mm
Weight:
140kg/2sets,45kg,45.00Kg
Working Environment:
Indoor/Outdoor (with A Tent Over),-10-70 Degree,indoor / Outdoor,Indoor & Outdaoor
Power Voltage:
AC220V/110V±10%,50Hz/60Hz,50Hz
Motor:
DC Brushless Motor,30W/24V,Brusless / Brushed Optional
Payment & Shipping Terms
Minimum Order Quantity
1
Price
99-3000 Dollar
Packaging Details
Wooden box
Delivery Time
20day
Payment Terms
MoneyGram,Western Union
Supply Ability
200ps
Product Description

Scenic spot ticketing brushless fully automatic intelligent Butterfly Shape Tripod Turnstile CXT-SW126

Butterfly Shape Tripod Turnstile Core Features:

Scenic spot ticketing brushless fully automatic intelligent Butterfly Shape Tripod Turnstile CXT-SW126 0
Scenic spot ticketing brushless fully automatic intelligent Butterfly Shape Tripod Turnstile CXT-SW126 1
Scenic spot ticketing brushless fully automatic intelligent Butterfly Shape Tripod Turnstile CXT-SW126 2
Scenic spot ticketing brushless fully automatic intelligent Butterfly Shape Tripod Turnstile CXT-SW126 3


  • Combined with brushless motor for a longer lifespan.
  • ARM control board technology with merits for stronger function and better extensibility.
  • Modular structure design is simpler and easier to maintain.
  • Better buffer effect, greatly improve anti-collision ability and prevent human injuries;
  • With promptly contrarotation will deter the intruder
  • High cost-effective
  • Lane width:510mm
  • Application environment:Indoor/Outdoor
  • Appearance grade:High/middle/low(optional)
  • Anti-trailing: Excellent
  • Anti-collision: Excellent
  • Pass group:pedestrian-only
  • High cost-effective
  • tripod barriers for access control
  • used as bus turnstile

Slim Tripod Turnstile Package:

Butterfly Shape Tripod Turnstile Function Comparison Table:


Seq.Item nameMarket productCXT upgraded product
1Rotation modeManual pushElectric power
2Positioning principleOptical coupling pointMotor self-position
3Positioning modePositioning armTimely re-push, unlock
4Transmission modeMagnetic valveBrush-less motor
5Control TechnologySCMARM
6Arm lock modeManualAuto
7BufferingNonehas
8Anti-reverseNonehas
9NoiseBignone
10Mechanical wearBignone
11unauthorized mechanical alarm (infrared)Nonehas
12Passing indicator Data settingNonehas
13Life-span1-3YearAbove 6 year
14Flow capacity25-30per./min.30-45per./min.
15Normal open when power offhashas
16Memoryhashas
17Fire protection inputhashas
18Feedback signal outputhashas

Scenic spot ticketing brushless fully automatic intelligent Butterfly Shape Tripod Turnstile CXT-SW126 4

Scenic spot ticketing brushless fully automatic intelligent Butterfly Shape Tripod Turnstile CXT-SW126 5


Scenic spot ticketing brushless fully automatic intelligent Butterfly Shape Tripod Turnstile CXT-SW126 6
