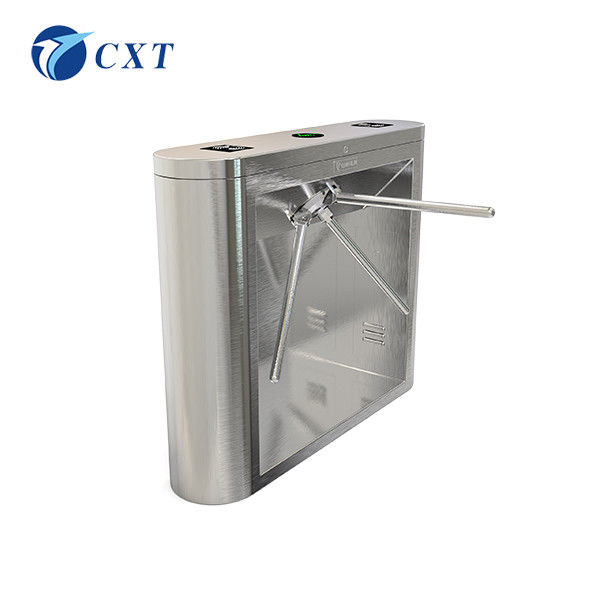

Tripod turnstile CXT-SW128YZ

CXT-SW128YZ bridge-type rounded corner three-roller turnstile

1) It has fault self-checking and alarm prompt functions, which is convenient for users to maintain and use.
2) It can be connected to any control signal or button or remote control output by any control device to realize single-way and two-way control passage.
3) It can arbitrarily set single-way and two-way free passage.
4) Automatic reset function: It will automatically reset every time it rotates 120 degrees, or if it does not pass within the specified time (delay is adjustable in multiple gears), the system will automatically cancel the right to pass this time.
5) Light indication: High-brightness traffic light status indication, guiding passage.
6) Anti-tailgating function: It rotates 120 degrees for each person passing. If someone follows the gate, it will automatically lock and alarm.
7) Fire input: It can be connected to the fire alarm signal to realize the uninterrupted power-off and normal opening of the gate.
8) Memory function: Accurate signal memory, when receiving legal signals for multiple consecutive times, it will automatically reset after detecting the last person passing, which greatly improves the passage speed. (This function can be selected by dialing)
9) Alarm prompt function: When passing illegally or rushing through the gate, an alarm prompt will be automatically issued.
10) Anti-reversal function: When reversal occurs during the passage, the gate bar will automatically lock and issue an alarm, and the passage will be automatically restored after the reversal external force disappears.
11) Anti-buffer function: When passing illegally or rushing through the gate, the gate bar will automatically rotate to the corresponding angle and lock to achieve humanized injury prevention. When the external force disappears, it will automatically reset.
12) Unattended: The gate bar will automatically drop when the power is off, and automatically go up when the power is on.
13) Dynamic prompt: When receiving a legal passage signal, the gate bar will automatically rotate about 5 degrees, and it will gently rotate to the next reset point and stop after a light touch.

Expandable functions:
1. Remote control and management through the management computer (command docking is required).
2. Counting function to realize the number of people present.
3. Personalized voice prompt function makes the channel closer to life.

CXT high-end series tripod gate is a powerful fast-pass management system. It is an ideal upgrade equipment for intelligent access control, which solves the obstacle problems existing in traditional access control systems, and is especially suitable for the passage of people carrying luggage or disabled people. Mainly used in supermarkets, supermarkets and other places. The product shell is stamped with imported stainless steel, which is beautiful, rust-proof and durable. The gate ensures the orderly passage of personnel and prevents illegal entry and exit. In an emergency, the gate can be opened quickly to evacuate personnel.

Main features of CXT scenic area tripod gate:
The mechanical drive unit adopts an electromagnetic locking mechanism, which does not require the use of expensive motors and reduces maintenance costs.
When the gate arm rotates more than half, the gate will automatically rotate to the next stationary position. If the arm rotates less than half, it will automatically rotate back to the current stationary position.
Built-in adjustable tensioner can control the rotation force and minimize over-rotation. Just push the arm gently to rotate, which is easy to use even for the elderly or children.
The turnstile can be configured for two-way or one-way rotation. The housing is locked with a special key to prevent tampering.
When the power is off, the arm will drop according to the fire requirements (optional setting of free passage when the power is off). When the power is on, the arm can be raised manually.
Emergency configuration: When the power is off, the tripod will automatically drop to provide a clear escape route in an emergency.
The control panel has counting and LED digital functions. Traffic lights: The red cross symbol lights up to indicate that the device is not passable, and the green arrow indicates the direction of allowed passage.
After being equipped with different access control systems, it can be used for intelligent control and management of channels.
An effective locking action can only allow one person to pass at a time. If the passage is not completed within the set time, the machine will automatically lock the door. The set time (2-60 seconds, default 10 seconds) can be set through the built-in keypad or software.
Self-recovery function: If the passage is not completed within the set time (default 5 seconds, adjustable through software), the machine will automatically recover and the count will be invalid.
